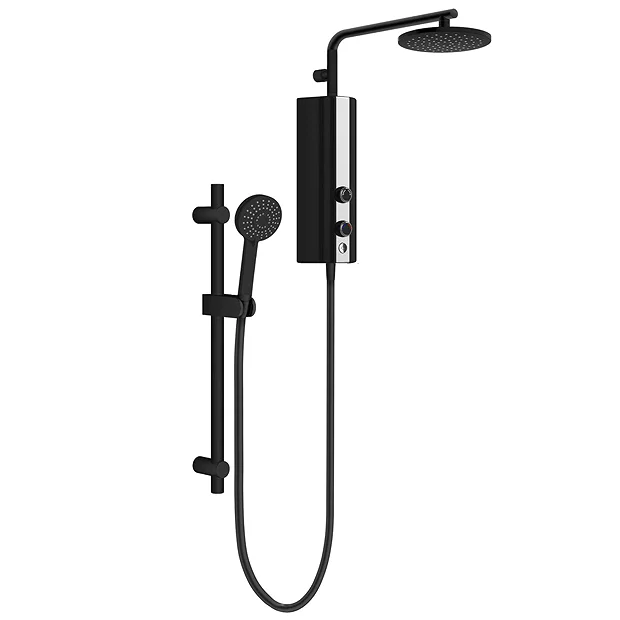

Aquas Aquamax 9.5kw Matte Black Electric Shower
Aquas Aquamax 9.5kw Matte Black Electric Shower
Regular price
£399.95 GBP
Regular price
Sale price
£399.95 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Low stock: 5 left
- Range: AQUAMAX
- Name: Top Manual FLEX SMART
- Colour: Black / Chrome
- Handshower:
- Handshower 100mm diameter
- Overhead shower: 200mm
- Slidebar:
- Rail length 600mm with front load slider
- Distance between rail brackets adjustable
- Smooth black hose 1,5m 1/2" x 1/2" twistfree non conductive
- Shower arm 400mm with free fixation
- Power Rating: 9.5kw
- Eco function
- Minimum Flow required: 1.0 Bar
- Temperature control:
- Electricity leakage safety
- High pressure protection
- Temperature and flow stabilizer
- Advantages:
- Fiber reinforced Tank - less limescale, extended life, energy efficient, burst resistant
- Controls:
- Start/Stop button
- Easy Grip - temperature control
- Two-way ceramic divertor to switch between Overhead and Handshower
- Installation:
- Electrical connection
- Water entry points right - top, bottom, back
- All indulge and AQUAMAX models have a water connection that is suitable for a "right" only water supply connection.
- The water connection pipe is not reversible.
- Use standard UK plumbing connections - compression - Push fit.
- Cable entry points left hand side - top, bottom, back : right hand side - top, bottom, back
- Outlet connection 1/2" compression and pushfit 1/2"
- Power Input:
- A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
- A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) - 1.0 BAR is required
- A Max Static pressure of 500 K /Pa ( 75 ib / Sq In ) - 5.0 BAR should not be exceeded
This shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
